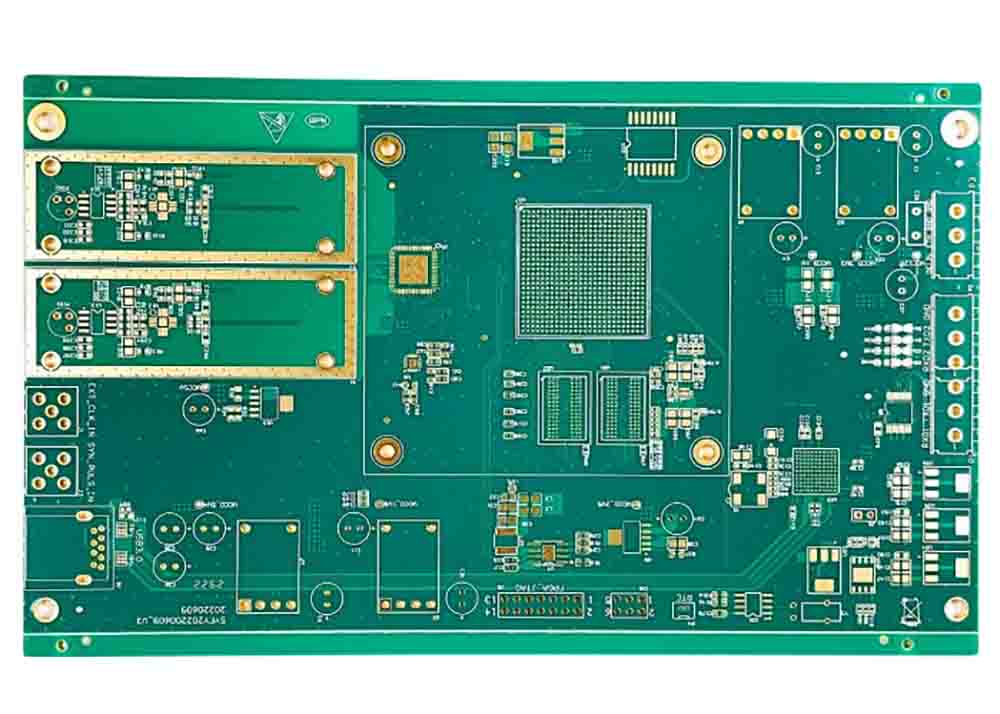

Automotive Connector PCB Board, Material R-5725s, Immersion Gold
High Frequency High Speed HDI Circuit Board
1.Product Information

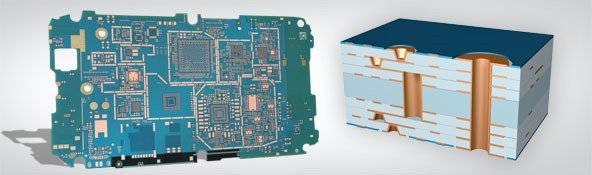

What are HDI PCBS?
HDI PCBs are one of the fastest growing technologies in the field
of PCB manufacturing. Anyone affiliated or interested in this
industry is sure to come across this term every now and then. And
if your company isn’t using them, you better start now. So the
question lies, what are exactly HDI PCBS?
HDI PCBs (High Density Interconnector) are essentiallya type of
circuit board which has a higher wiring density per unit area as
opposed to conventional boards. HDI PCBs help to make room on your
printed circuit board while increasing their efficiency, allow for
high frequency transmission, decrease redundant radiation etc.
Characteristics of HDI PCBs:
HDI PCBs have finer spaces and lines; have minor bias and increases
connection pad density. The board has an overall increase in
density because of the miniaturization and arrays of the electric
parts. An HDI PCB usually consists of blind and buried vias and
often microvias that are 0.006 or less in diameter.The placement of
the parts requires extra precision because of the miniature pads
and the fine pitch of the circuit board.
Benefits of HDI PCBs:
By the use of HDI technology, designers can place more components
on both sides of the RAW PCB according to requirements. The
placement of smaller components closer together is also possible.
The overall result is faster transmission of signals and reduction
in loss of signals and delays.
HDI PCBs are used to reduce the weight and dimension of products
and to enhance efficiency of the device. HDI PCBs are taking
advantage of the latest tech to amplify the functionality of PCBs
in less area. You can find HDI PCBs in mobile phones, touch screen
devices, laptops, computers, cameras, and even medical devices, and
aircraft devices. The possibilities are endless.
Applications of HDI PCBS:
As mentioned before, the possibilities of the uses of HDI PCBs are
endless. The common reason is increase in packaging density. They
improve HDI PCB function by stabilizing power usage, reducing
interference induction, improving signal integrity and also have
faster routing capabilities. This is why you will find them in all
kinds of industries.
One of the fields we mentioned is the medical field. Medical
devices often require smaller size and high transmission rate which
fortunately, is what HDI PCBs deliver. The perfect example is an
electronic implant. It must be small enough to it into the human
body but also must function with high-speed signal transmission.
They are also used in monitoring devices, CT scanners etc.
Conclusion:
In 1992, the average cell phone weighed 220 to 250 grams and did
not have the functionality present day mobiles offer. Today we have
devices weighing 151 grams or even less with endless applications.
This is all made possible with the help of HDI PCB technology.
Similarly products will keep getting smaller with increased
efficiency. This will help us to push technology to smaller and
lighter requirements for our daily use.
Order HDI PCB Manufacturing Service Online Today
Our Online PCB Quote and Order System allow you to get PCB
production price within seconds. Click Here to Visit our quote
page, and then fill in your circuit spec (it is crucial that you
select YES under Laser Drill option, and choose the right number
under Type of stacked/staggered microvias section). If your
high-density PCB project requires specifications not listed in
quote page, feel free to reach us for solutions.
2. Our Services
1. PCB fabrication.
2. Turnkey PCBA: PCB+components sourcing+SMD and through-hole assembly
3. PCB clone, PCB reverse engineering.
3. Company Information
Global Well Electronic Inc. is a professional PCB solution supplier
from Shenzhen, China, integrating PCB circuit board production and
processing, STM processing and mounting, PCBA OEM, component
purchasing, PCB/PCBA custom design-production- A comprehensive PCB
circuit board company with one-stop turnkey service of
processing-assembly-finished products. The company has a strong
supply chain system, a professional and efficient collaborative
team, a sound and complete quality control system, and the business
philosophy of honesty and trustworthiness, customer first, and
presents the products to everyone with low prices, reliable
quality, high-quality service and after-sales service. client.
We provide total PCB solutions from PCB design to final mass
production, including PCB fabrication and assembly, component
sourcing, solder paste stencils, conformal coatings, and more.
Serving the global electronics field, including industrial control,
medical electronics, military equipment, power communication,
automotive electronics, AI artificial intelligence, smart home and
other industries.
Our factory located in Shenzhen, and have almost 300
employees, more than 30 production lines include SMT, DIP,
automatic welding, aging test and assembly. We have SMT machines
from Japan and Korea, automatic solder paste printing machines,
solder paste inspection machine(SPI)12 temperature zone reflow
soldering machine, AOI detector, X-RAY detector, wave soldering
machine, EM PCB ,dispenser,laser print machine etc., Different line
configurations can meet requirements from small sample order to
bulk shipment.
Our company has obtained ISO 9001 quality system certification and
ISO 14001 system certification. With multi-testingprocedures, our
products carry out the quality system standard strictly.
4. Main Equipment:
5. Company Capability
(1)PCB Technical Specification
| Order Quantity | 1-300,000,30000 Square Meter/Square Meters per Month module
electronic board |
| Layer | 1,2,4,6,upto 24 layer |
| Material | FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc |
| PCB type | Rigid,flexible,rigid-flexible |
| Shape | Any shape: Rectangular,round,slots,cutouts,complex,irregular |
| Max PCB dimensions | 20inch*20inch or 500mm*500mm |
| Thickness | 0.2~4.0mm, Flex 0.01~0.25'' |
| Thickness tolerance | ± 10% |
| Copper thickness | 0.5-4 oz |
| Copper thickness tolerance | ± 0.25oz |
| Surface finish | HASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc |
| Solder mask | Green, red,white,yellow,blue,black, Double-sided |
| Silk screen | White,yellow,black,or negative, Double-sided or single-sided |
| Silk screen min line width | 0.006'' or 0.15mm |
| Min drill hole diameter | 0.01'',0.25mm.or 10 mil |
| Min trace/gap | 0.075mm or 3mil |
| PCB cutting | Shear,V-score,tab-routed |
(2)Turnkey PCBA Capabilities
| Turnkey PCBA | PCB+components sourcing+assembly+package |
| Assembly details | SMT and Thru-hole, ISO lines |
| Lead Time | Prototype: 15 work days. Mass order: 20~25 work days |
| Testing on products | Flying Probe Test, X-ray Inspection, AOI Test, functional test |
| Quantity | Min quantity: 1pcs. Prototype, small order, mass order, all OK |
| Files we need | PCB: Gerber files(CAM, PCB, PCBDOC) |
| Components: Bill of Materials(BOM list) |
| Assembly: Pick-N-Place file |
| PCB panel Size | Min size: 0.25*0.25 inches(6*6mm) |
| Max size: 20*20 inches(500*500mm) |
| PCB Solder Type | Water Soluble Solder Paste, RoHS lead free |
| Components details | Passive Down to 0201 size |
| BGA and VFBGA |
| Leadless Chip Carriers/CSP |
| Double-sided SMT Assembly |
| Fine Pitch to 0.8mils |
| BGA Repair and Reball |
| Part Removal and Replacement |
| Component package | Cut Tape,Tube,Reels,Loose Parts |
| PCBA process | Drilling-----Exposure-----Plating-----Etaching Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function
Testing-----Temperature - Humidity Testing |
6. PCB&PCBA Products Show
7. Company Certifications
8. Packaging & Shipping
Packing details:
PCBA are packed into plastic bags. Plastic bags are put into small carton. 4 small carton into a big carton.
A big carton: 35×32×40 cm size.
Shipping Express:
FedEx, DHL, UPS, TNT, EMS, private lines, etc.
Air freight, Sea shipping
If you need help on PCB layout, you can contact us and send the
board to us. We also provide Reverse Engineering Service.
We have been providing PCB Manufacture for many years in China,and
we have rich experience in product production and product
assembly.We believe our team will provide high quality and low cost
service for you.
Thank you very much for all your support .
Best Regareds.
9. PCB or PCBA Files Requests:
1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly (please kindly advise us if
there is any acceptablecomponents substitution.)
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary
10. FAQ:
Q: What files do you use in PCBA fabrication?
A: Gerber or Eagle, BOM listing, PNP and Components Position
Q:Is it possible you could offer sample?
A: Yes, we can custom you sample to test before mass production
Q: When will I get the quotation after sent Gerber, BOM and test
procedure?
A: Within 6 hours for PCB quotation and around 24 hours for PCBA
quotation.
Q: How can I know the process of my PCBA production?
A: 7-10 days for PCB production and components purchasing, and 10
days for PCB assembly and Testing
Q: How can I make sure the quality of my PCBA?
A: We ensure that each piece of PCBA products work well before
shipping. We'll test all of them according to your test procedure.
Also if there are any defect items during the shipping, we also can
be free to repair for you.
